Magnetic Drive Pump - Sealless Pump - PTC-400

PTC-400

Product Description

PTCXPUMP: Advanced Solution for Corrosive Liquid Pumping

Material Excellence: Engineered with GFRPP or CFRETFE materials to handle corrosive liquids with superior resistance.
Sealless Design: Ensures leak-free, loss-free, and safer operations.
Superior Performance: Lightweight construction paired with exceptional performance, enhanced pressure resistance, and durability.
Versatile Applications: Ideal for chemical fluid transfer, surface treatment, wastewater management, circuit board cleaning, environmental protection, and other industrial processes.

Product Specification

Model	Suction & Discharge Diameter		Standard Flow & Head (L/min - m)		Max. Flow (L/min)		Motor Power (kw)
Model	Suction	Discharge	50Hz	60Hz	50Hz	60Hz	Motor Power (kw)
PTC-400	40A	40A	100 - 6.3	100 - 11	260	260	0.37

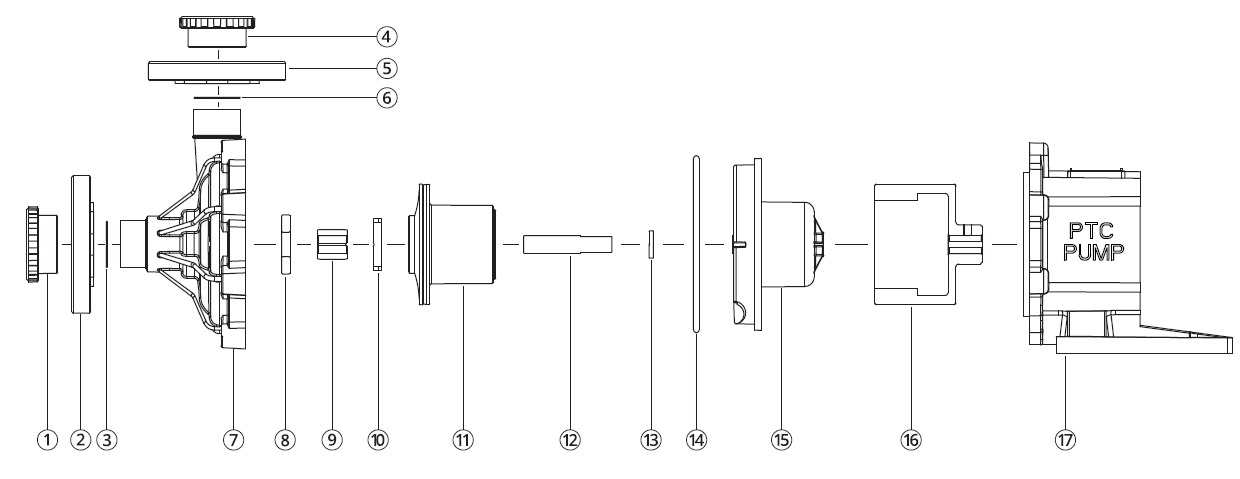

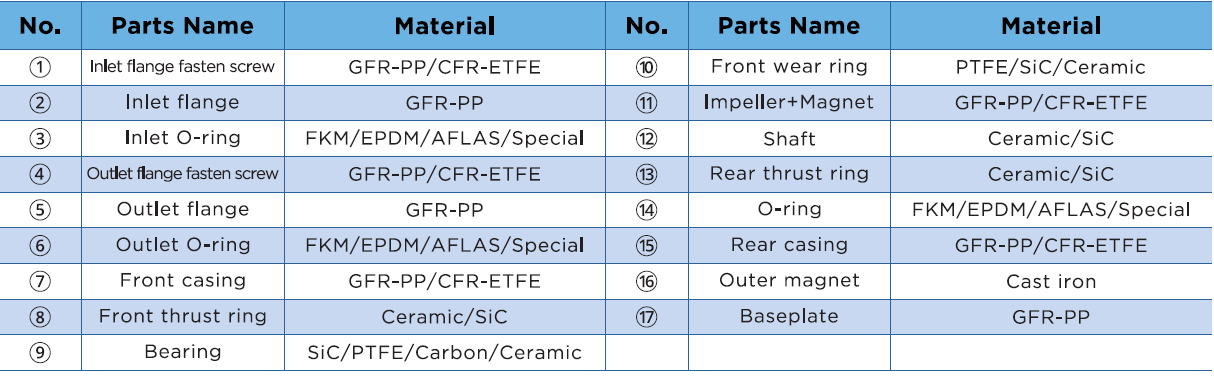

Construction & Material

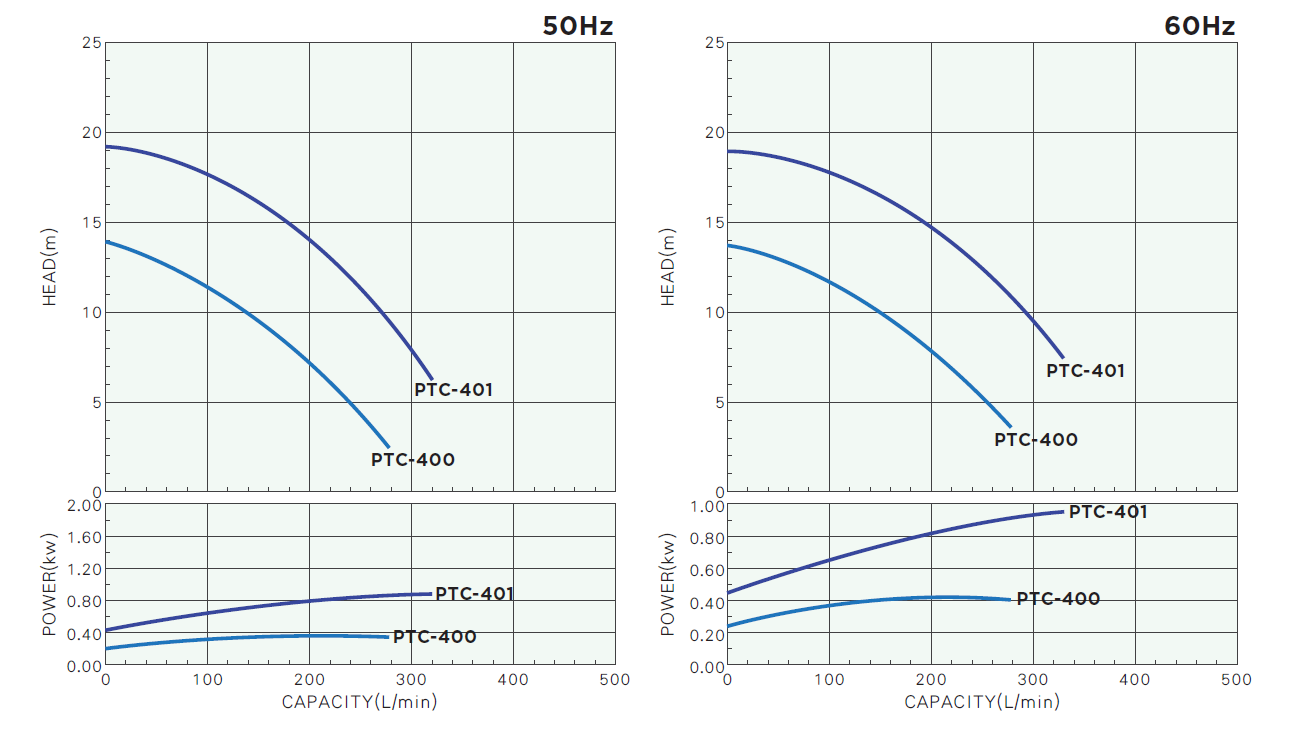

Performance Curve *The performance curve is for reference and preliminary selection only

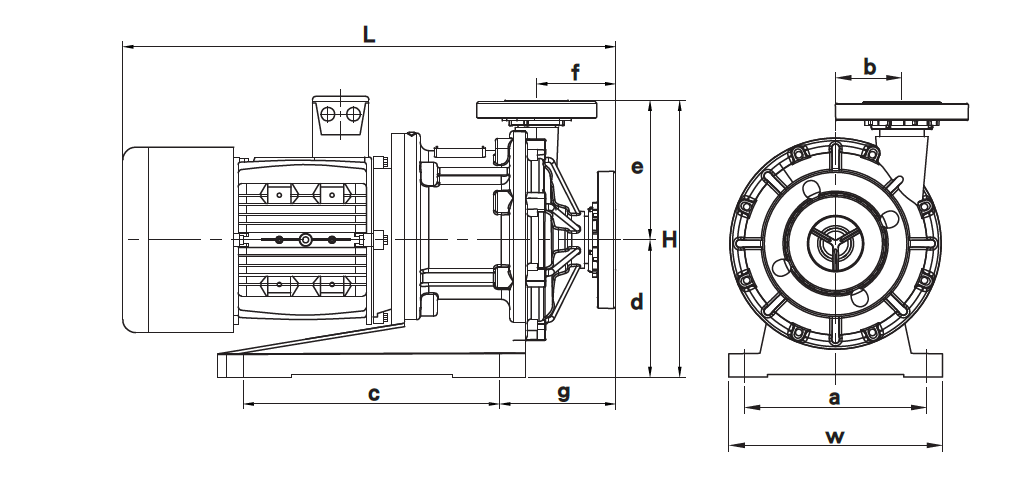

Dimensions(mm) *Dimension of (L) will differ depending on the brand and installation of the motor

Model	w	H	L	a	b	c	d	e	f	g
PTC-400	140	227.5	(441)	110	54.2	98.5	96	131.5	86.6	157.6
